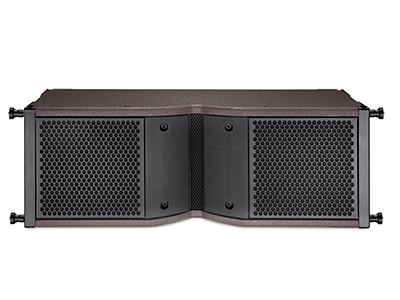

KA-206参数

技术指标:

型号                       KA-206

系统                       无源2分频系统

频率响应                   80Hz-18KHz(±3dB)/75Hz-20KHz(±10dB)

低高音单元配置             LF:2*6"(153mm)/1.38"(35mm音圈)voice coil  布线低音单元

                           HF:1*1"(25mm)exit/1.73"(44mm音圈)voice coil  振膜压缩单元

阻抗                       8ohm

灵敏度                     96dB

功率                       300W

最大声压级                 121dB SPL/124dB SPL peak

标称覆盖角                 110°水平方向性

连接插座                   2 Neutrik NL4MP

                           插脚连接(输入)1+/1-  PIN CONNECTIONS (INPUT) 1+/1-

                           插脚连接（链接）1+/-至1+/- PIN CONNECTIONS (LINK) 1+/- to 1+/-

尺寸                       560×305×320mm

净重                       16.0KG/1PCS
